SCOUT 70 SS - Silicon AFM probe
SCOUT 70 SS - Silicon AFM probe
Get high resolution images every time with our pack of 10 general purpose AC mode Super Sharp silicon AFM probes, suitable for non-contact/soft tapping and force modulation modes in air, on softer samples. Available uncoated or with an aluminium or gold reflective backside coating. We also offer SEM images of each individual tip.
Spring constant: 2 N/m
Resonant frequency: 70 kHz
Nominal radius: 2 nm (guaranteed <5 nm)
For bulk orders, quotation requests, or to pay in Euros/USD:
Reliable probes that save you time…
“The SCOUT probes give more reliable high resolution than other suppliers, which often have a dud or two from every box, hence why I recommend them.” - Dr James Thomas, University of Oxford, UK
“It was much easier to set up “good” imaging parameters with these tips compared to tips from other suppliers. I will definitely recommend these.” - Fouzia Bano, University of Leeds
Cantilever Specifications
| Parameter | Nominal | Range |
| Spring constant (N/m) | 2 | 0.5 - 3.5 |
| Resonant frequency (kHz) | 70 | 45 - 80 |
| Shape | Rectangular | |
| Length (µm) | 225 | 223 - 227 |
| Width (µm) | 30 | 29 - 31 |
| Thickness (µm) | 2.5 | 2.0 - 3.0 |
| Material | Silicon (n-type, Antimony) | |
| Resistivity (Ωcm) | 0.02 | 0.015 - 0.025 |
NB. Nominal values for spring constants and resonant frequencies are calculated using well known formulae and based on expected probe dimensions. The ranges are calculated using measured dimensions.

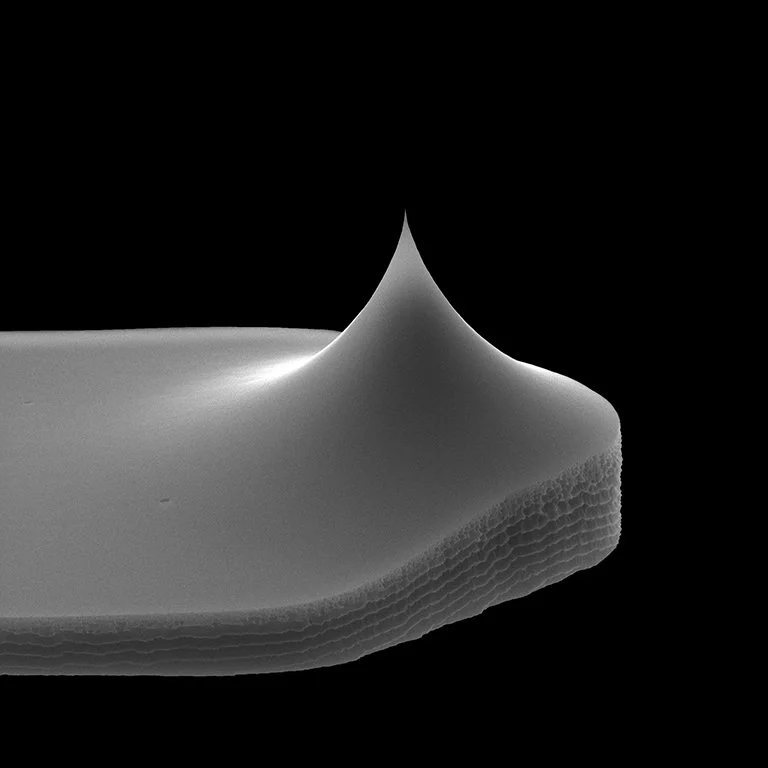

Tip Specifications
| Parameter | Nominal | Range |
| Radius (nm) | 2 | < 5 |
| Height (µm) | 12 | 10 - 13 |
| Set back (µm) | 7.5 | 6.5 - 8.5 |
| Shape | Conical | |
| Cone Angle (°) | 25 | 15 - 40 |
| Material | Silicon (n-type, Antimony) | |
| Resistivity (Ωcm) | 0.02 | 0.015 - 0.025 |
Option Reflective Coatings
Uncoated (SCOUT 70 SS): Frontside/Tip - None, Backside/Reflective - None
Aluminium (SCOUT 70 SS RAl): Frontside/Tip - None, Backside/Reflective - 40 nm Al
Gold (SCOUT 70 SS RAu): Frontside/Tip - None, Backside/Reflective - 5 nm Ti, 40 nm Au
Disclaimer
At NuNano we continually strive to develop and improve our products. Consequently, Nu Nano Ltd reserves the right to change specifications without notice.
